UK Plug 5V 3A Power Supply - 15W Max, IEC/En 62368-1 Certified, Ukca Approved

1 / 5

UK Plug 5V 3A Power Supply - 15W Max, IEC/En 62368-1 Certified, Ukca Approved

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specification

Model NO.

APS015KB

Certification

TUV, RoHS, ISO9001, CCC, CE, Ukca, UL, Rcm, PSE, Kc

Color

Black or White

Type

OEM Solution

Input

100~240VAC, 50/60Hz

Output Voltage

5V~24V

Output Current

0.5A~3.0A

Rate Power

12W~15W

Connection

Plug In

Structure

On-Off Type

Protection

OVP, OCP, SCP, OTP

Capacity

300,000 PCS/Month

🔌

Product Overview

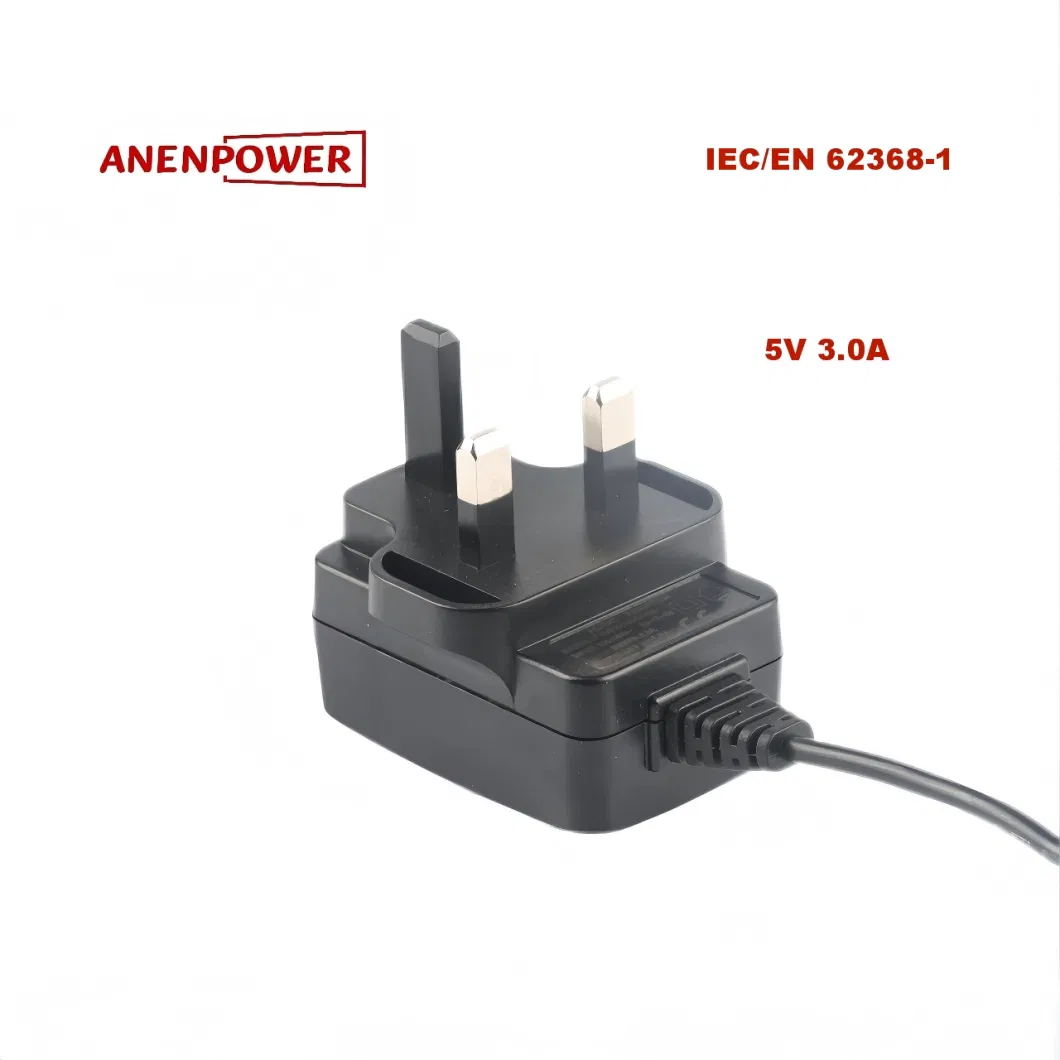

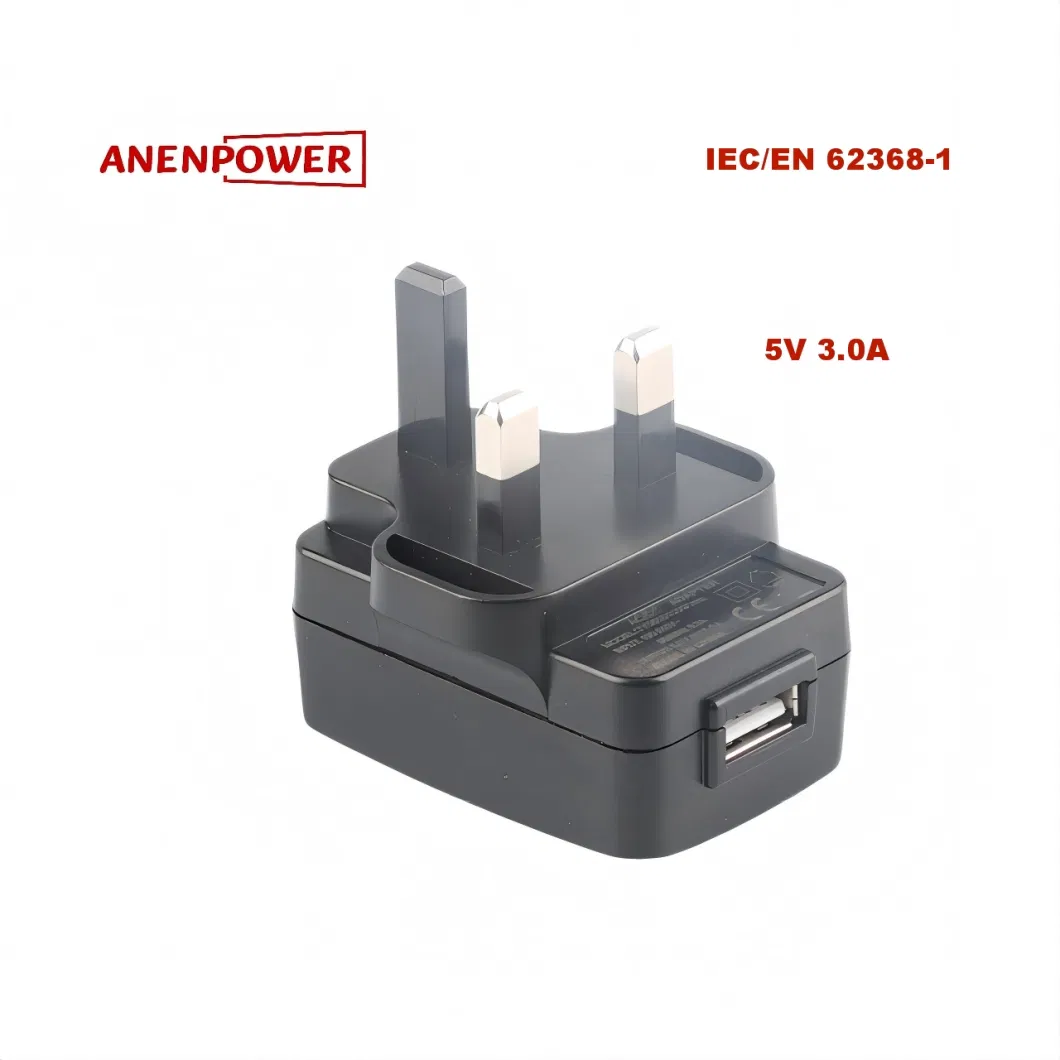

UK Plug 5V 3A Power Supply - 15W Max, IEC/EN 62368-1 Certified, UKCA Approved

This 15W (5V/3A) power supply is a fully compliant, safety-certified solution for consumer electronics in the United Kingdom. Designed with an integrated BS 1363 three-pin UK plug, it meets all requirements of the UK Electrical Equipment (Safety) Regulations 2016 and carries the mandatory UKCA mark. The unit is certified to IEC/EN 62368-1:2014, ensuring robust protection against electrical, thermal, and fire hazards.

Ideal for smartphones, tablets, Bluetooth speakers, IoT devices, and USB-powered peripherals, this compact wall-mount adapter delivers a stable 5V DC output with low ripple (≤100 mV p-p). It operates from a universal input range of 100-240V AC, supporting energy conservation with >85% efficiency and <0.1W no-load power consumption.

🛡️

Safety & Compliance

UKCA marking in accordance with British regulatory standards.
Full compliance with IEC/EN 62368-1 for Class II double-insulated construction.
Limited Power Source (LPS) classification to minimize shock and fire risk.
Integrated protections: Over-Voltage, Over-Current, Short-Circuit, and Over-Temperature.
BS 1363-compliant plug with insulated pin sleeves for child safety.
RoHS 3 and REACH compliant - free of hazardous substances.

📊

Technical Parameters

Model NO.	Max Power	Voltage	Max Load	Min Load	Load Reg.	Line Reg.	Ripple & Noise
APS015KA	12W	5V	2.4A	0A	±5%	±1%	100mV
APS015KB	15W	5V	3.0A	0A	±5%	±1%	100mV
APS015KC	12W	9V	1.34A	0A	±5%	±1%	100mV
APS015KD	15W	9V	1.67A	0A	±5%	±1%	100mV
APS015KE	12W	12V	1.0A	0A	±5%	±1%	100mV
APS015KF	15W	12V	1.25A	0A	±5%	±1%	100mV
APS015KG	12W	15V	0.8A	0A	±5%	±1%	100mV
APS015KH	15W	15V	1.0A	0A	±5%	±1%	100mV
APS015KJ	12W	24V	0.5A	0A	±5%	±1%	100mV
APS015KK	15W	24V	0.63A	0A	±5%	±1%	100mV

🚀

Manufacturing Advantages

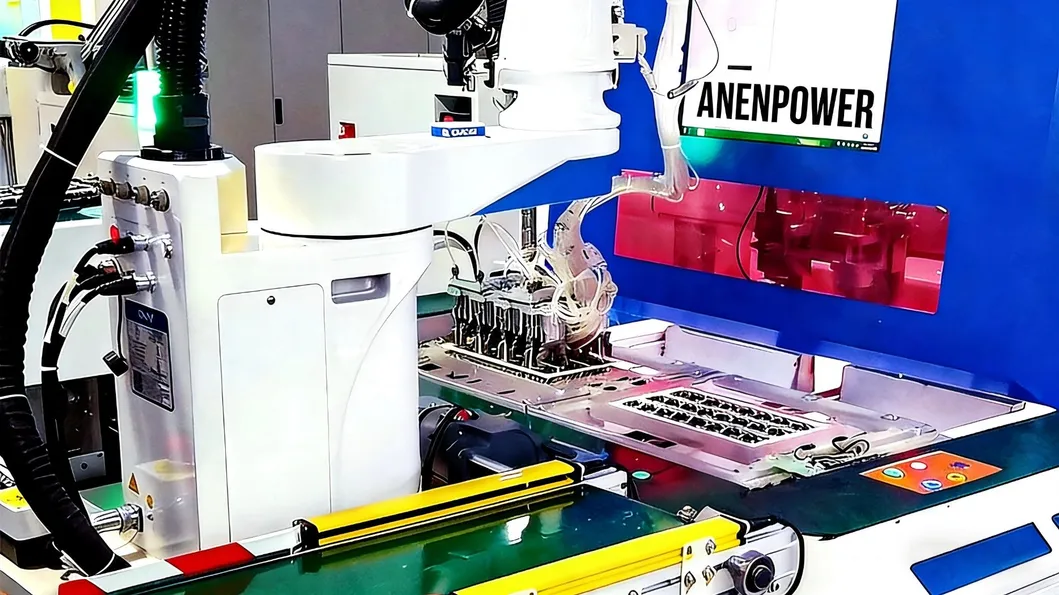

Automated Production

Fully automated lines operate 24/7, providing significantly higher efficiency than manual assembly and shortening delivery cycles.

Consistent Quality

High-precision robotic arms and intelligent testing systems eliminate human error, ensuring stable voltage and ultra-low defect rates.

Cost Efficiency

Automation reduces labor costs by 80%, allowing us to offer competitive pricing while maintaining premium performance.

⚙️

Service & Warranty

We provide a 24-month warranty covering defects in materials and workmanship. Technical support is available for installation guidance and troubleshooting. Products are housed in UL94 V-0 flame-retardant enclosures for maximum safety.

Our expertise spans medical power adapters (IEC 60601) and consumer solutions (IEC 62368/61558), with products ranging from 5W to 1000W, backed by global certifications including UL, CE, FCC, TÜV, and UKCA.

❓

Frequently Asked Questions

What safety certifications does this power supply hold?

The unit is fully certified to IEC/EN 62368-1 standards and carries the UKCA mark, along with CE, UL, TUV, and RoHS compliance.

Can this adapter be used outside the UK?

Yes, it supports a universal input range of 100-240V AC, 50/60Hz. However, a physical plug adapter will be required for non-UK socket types.

Is it suitable for medical equipment?

This specific model is certified for ICT and consumer electronics (IEC 62368). For medical applications, please inquire about our IEC 60601-1 rated models.

What kind of protections are built-in?

It includes integrated Over-Voltage Protection (OVP), Over-Current Protection (OCP), Short-Circuit Protection (SCP), and Over-Temperature Protection (OTP).

What is the warranty period for this product?

We offer a 24-month warranty covering materials and workmanship defects under normal usage conditions.

How energy efficient is this power adapter?

It features >85% energy efficiency and a no-load power consumption of less than 0.1W, meeting UK ErP and EcoDesign directives.

Product Detail

UK Plug 5V 3A Power Supply - 15W Max, IEC/En 62368-1 Certified, Ukca Approved
